The Bedrock of Success: The Authority Guide to Foundation Types in Groundworks & Landscaping

By the LG Groundworks Technical Team

They say you shouldn’t build a castle on sand, but in the world of professional groundworks and landscaping, we know that with the right engineering and the correct foundation, you can build almost anything, anywhere. Whether you are planning a new build extension, a heavy-duty retaining wall, a garden studio, or a commercial landscaping project, the foundation is the silent hero of the construction.

It is the component that never sees the light of day yet bears the weight of the entire project. Get it right, and your structure lasts a century. Get it wrong, and you face subsidence, cracking, and catastrophic failure within years.

At LG Groundworks, we believe an educated client is our best client. In this definitive guide, we are digging deep—literally—into the science of foundations. We will cover the specific types used in UK groundworks, how soil types dictate your choice, and the technical specifications that separate a DIY job from a professional engineering feat.

Part 1: The Pre-Requisite – Understanding Your Soil

Before a single bucket of concrete is poured, you must understand the ground you are standing on. In the groundworks industry, “Foundation Engineering” is actually 50% “Soil Mechanics.” The type of soil on your site determines two critical factors: the load-bearing capacity (how much weight the ground can hold) and the volume change potential (how much the ground moves with moisture changes).

The “Big Four” Soil Classifications

Most sites we encounter at LG Groundworks fall into one of these categories. Identifying them correctly is the first step in our site survey.

For more detailed geological data on your specific area, we recommend checking the British Geological Survey (BGS) Geology of Britain Viewer.

Part 2: Shallow Foundations (The Groundworks Standards)

Shallow foundations transfer the load of the building to the earth near the surface. These are the most common types utilized in residential extensions, garden rooms, and landscaping walls.

1. Strip Foundations

The “Strip” is the bread and butter of the UK construction industry. If you look at older houses, almost all of them utilize this method.

How it works: A continuous strip of concrete runs under all load-bearing walls. The weight of the wall travels down to the concrete strip, which spreads the weight over a larger surface area of soil, preventing the wall from sinking like a knife into butter.

Technical Specs:

• Depth: Usually a minimum of 1000mm (1m) to avoid frost heave, but can go down to 2.5m in clay soils near trees.
• Width: Dependent on the wall thickness, but typically 450mm to 600mm for domestic work.
• Construction: We excavate the trench, lay a 150mm-300mm bed of concrete, and then the bricklayers build the masonry wall up from that concrete strip to ground level.

2. Trench Fill Foundations

Trench fill is a modern variation of the strip foundation that is increasingly popular in groundworks because it saves on labor (specifically, bricklaying below ground).

The Difference: Instead of pouring a thin strip of concrete and building bricks up from the bottom of the trench, we fill the entire trench with concrete to within a few brick courses of the surface.

Pros & Cons:

• Speed (Pro): No need for a bricklayer to work below ground level. We pour, cure, and you are ready to build above ground.
• Safety (Pro): No need for workers to enter deep, potentially dangerous trenches.
• Cost (Con): Uses significantly more concrete than a strip foundation. However, the labor saving often offsets the material cost.

3. Pad Foundations

Pad foundations are isolated “pads” of concrete that support a single point load, such as a steel column, a timber post, or a gate pier.

Best Used For:

• Garden Studios (supporting the timber frame corners).
• Steel frame extensions.
• Large gazebos or pergolas.

In pad foundations, accuracy is paramount. The “holding down bolts” for the steel or timber posts must be set into the wet concrete with millimeter precision.

Part 3: Slab & Raft Foundations

Sometimes, digging trenches isn’t the answer. If the ground is weak, or if you are building a structure with a uniform floor load (like a garage or a large garden room), a Raft Foundation is the superior engineering choice.

The Raft Foundation

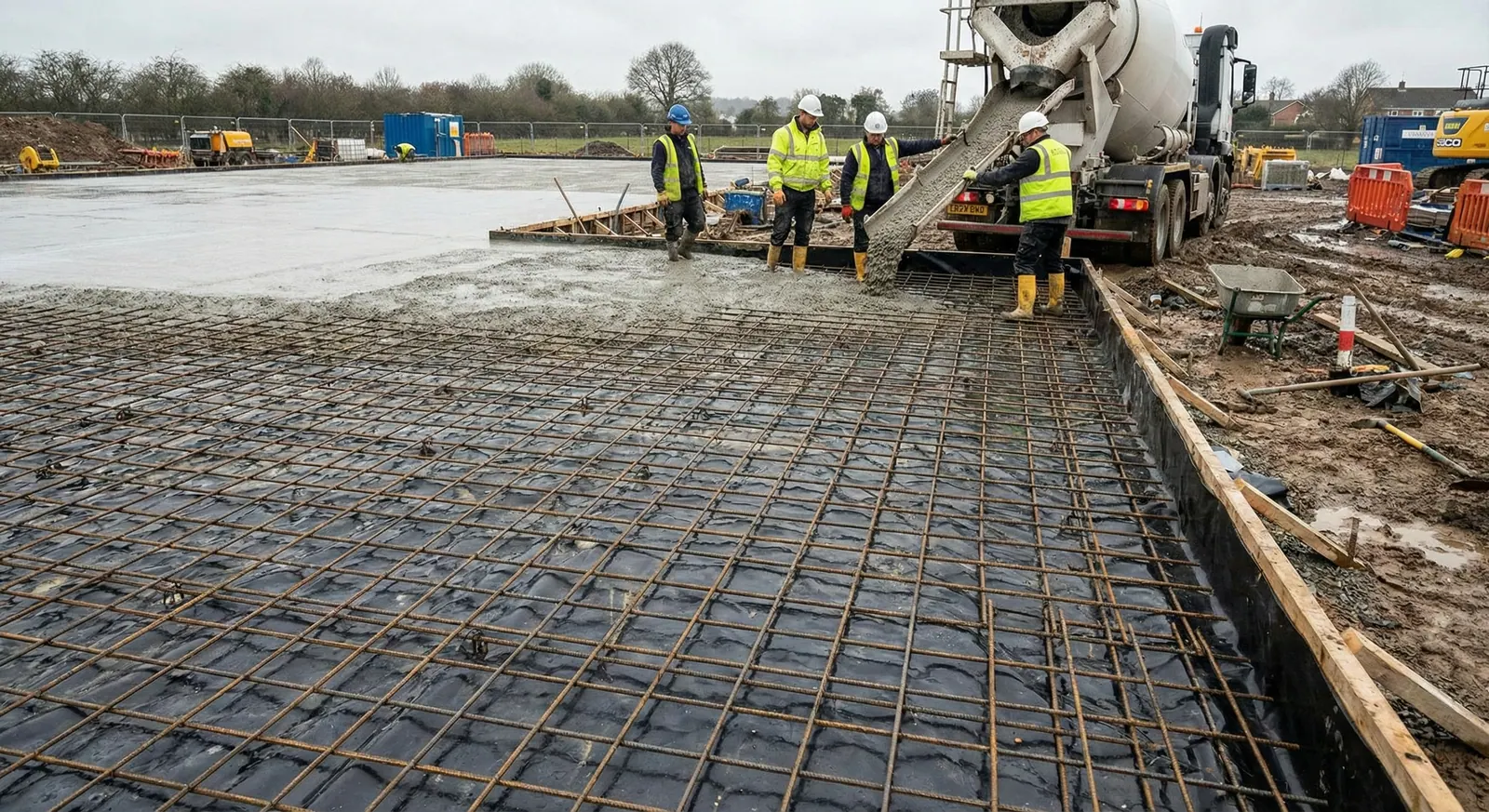

A raft foundation is essentially a large concrete slab, reinforced with steel mesh, that covers the entire footprint of the building. It “floats” on the ground like a raft on water.

Why choose a Raft?

1. Spreading the Load: Because the footprint is so large, the pressure on the ground (PSI) is very low. This is perfect for softer soils.
2. Integral Floor: Once the raft is poured, you already have your ground floor. There is no need to pour a separate floor slab later.
3. Speed: For simple shapes (squares and rectangles), it is incredibly fast to form and pour.

The Engineering Detail: Edge Thickening
A common misconception is that a raft is just a flat slab. In reality, a properly engineered raft usually has “toe beams” or “edge thickening.” The edges of the slab are dug deeper and reinforced with extra steel cages to prevent the edges from snapping under the weight of the external walls.

Part 4: Deep Foundations (Specialist Solutions)

When the good soil is buried too deep—perhaps 3, 4, or 5 meters down—digging a trench becomes dangerous and economically unviable. This is where deep foundations come into play. At LG Groundworks, we often deploy these for sites with high water tables or near clusters of large trees.

1. Piled Foundations

Piling involves driving or boring columns of concrete/steel deep into the ground until they hit solid bedrock or achieve enough friction to hold the weight.

For domestic projects, we typically use Mini-Piling. These are smaller rigs that can fit through a side gate, making them perfect for rear extensions. Once the piles are driven, we build a reinforced concrete “ring beam” on top of them, which acts as the bridge for your walls.

2. Screw Piles (The Landscaper’s Friend)

Screw piles are large galvanized steel screws. A hydraulic motor twists them into the ground.

Why we love them for Garden Rooms & Decking:

• Zero Concrete: No drying time. You can build immediately.
• Low Impact: No digging means no spoil to cart away. Your garden doesn’t turn into a mud bath.
• Removable: If you ever want to remove the garden room, the piles can be unscrewed and recycled.

Part 5: Landscaping-Specific Foundations

Not all foundations are for buildings. As a landscaping firm, a huge part of our work involves retaining walls and driveways. The principles of physics still apply.

Retaining Wall Foundations

A retaining wall has to hold back tons of soil. The foundation for a retaining wall must be significantly larger than a house foundation because it has to resist overturning (tipping over) and sliding.

We typically use the Inverted T design. The foundation extends far back into the hill (the heel) so the weight of the earth actually helps hold the wall down.

Driveway Sub-Bases (The Hidden Foundation)

When you look at a beautiful block paved driveway, you are looking at the “wearing course.” But the strength comes from the sub-base foundation.

For a standard domestic driveway, we follow the Planning Portal guidelines for permeable surfacing, but the structural layering is usually:

1. Sub-grade: Compacted natural soil.
2. Geotextile Membrane: Prevents the stone sinking into the soil.
3. Sub-base (Foundation): 150mm of Type 1 MOT (crushed granite/limestone), compacted in layers.
4. Laying Course: Sharp sand or grit.
5. Surface: Blocks/Pavers.

Part 6: Concrete Mixes & Technical Standards

The hole is dug, the steel is in. Now, what goes into it? Choosing the right concrete mix is vital. Using a weak mix in a foundation is a recipe for disaster.

At LG Groundworks, we almost exclusively use ready-mix deliveries for foundations to ensure the chemical consistency of the batch. Hand-mixing is simply not reliable enough for structural foundations.

Part 7: The “Tree Problem” (Subsidence & Heave)

We cannot finish this guide without mentioning the nemesis of foundations: Trees.

Trees extract moisture from the soil. In clay soils, this causes the ground to shrink, leading to subsidence. If you remove a large tree, the ground swells with moisture, causing “heave.”

The Solution: Heave Protection
When building near trees, we use “compressible heave material” (often looking like polystyrene sheets) lining the inside of the foundation trench. If the ground swells, it crushes the polystyrene rather than lifting your house.

For specific guidance on building near trees, the industry bible is the NHBC Chapter 4.2.

Why Choose LG Groundworks?

As you can see, “digging a hole” is a gross oversimplification of what we do. Foundation work requires a blend of geological knowledge, structural engineering, and heavy machinery precision.

At LG Groundworks, we don’t just follow the drawings; we understand the science behind them. Whether you need a trench fill for a new extension or a raft for a commercial unit, we ensure that what lies beneath is built to last.
